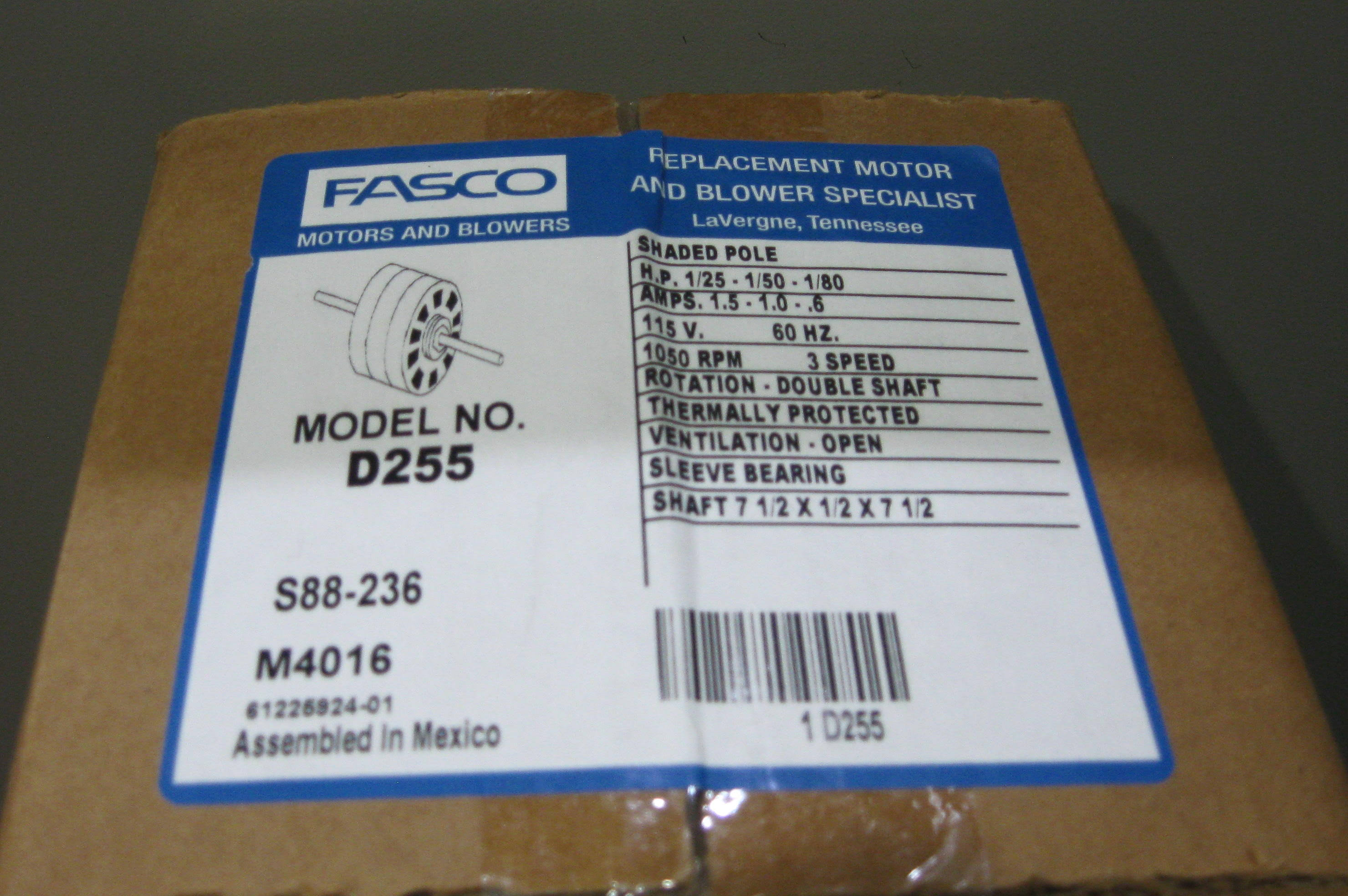

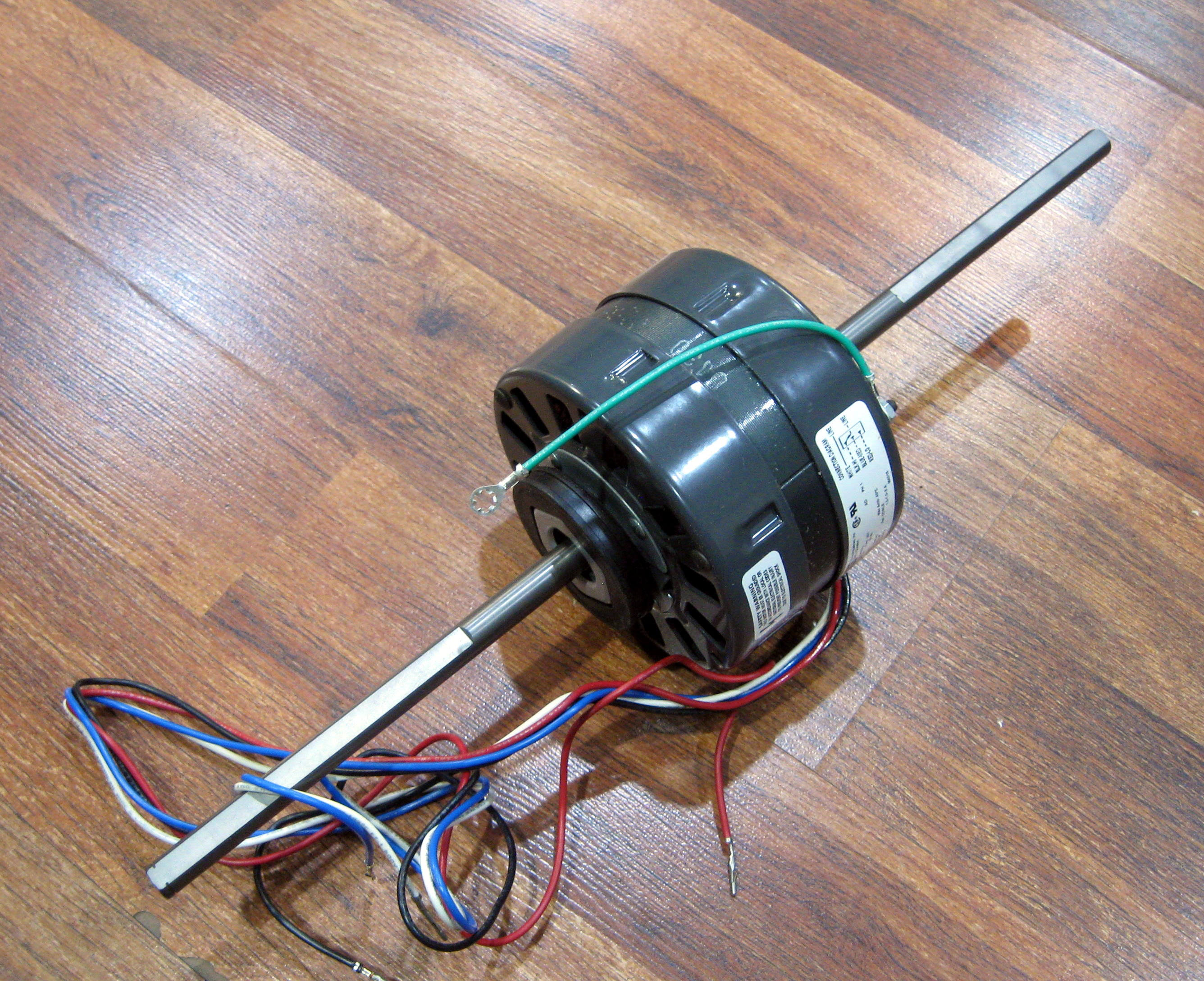

Fasco D255, 5x22 Shaded Pole Fan Coil Motor - 115 Volts 1050 RPM KE_DY0SD123

Product details:

SKU - D255 UPC - 815585029311 Fan Coil - Air-Conditioning - Heating Unit Motor 5" Diameter - 42 Frame Shaded Pole Thermally Protected Open Air Over Class A Insulation, 40°C Ambient Sleeve Bearing 1/2" Diameter Double Shaft with Flat" Leads with PIN Terminal Resilient Mounting Ring Le Length 5.13 Width 5.13 Height 22.00 Dimension Unit of Measure IN Weight 8.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) 0.04 Power Rating (In KW) 0.03 Speed (Max) 1050 Voltage 115 Frame Size 42 Enclosure Type Open Air Over Rotation Counterclockwise Lead End Mounting Type Resilient Rings Max Ambient 40°C Shaft Diameter ( In in.) 0.500 C Dim 18.26 Connection Drawing No SEE OUTLINE DE Bearing Type Sleeve Duty Air Over Electrical Type Shaded Pole Frame Length Frame Material Na Frame Type 42 Frequency 60 HP2 1/25-1/50-1/80 Number of Poles 6 Number of speeds 3 ODE Bearing Type Sleeve Outline Drawing No 7151013045_S001 Service Factor 1 Shaft Extension 7.50 Shaft Type Flat Speed2 1050 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
