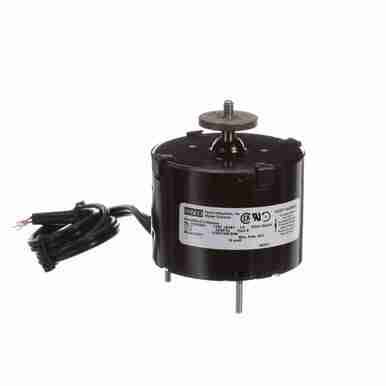

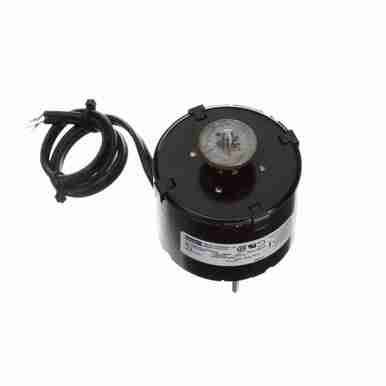

Fasco D437 16 Watt 1550 RPM 115 Volts Refrigeration Fan Motor NK_CV8NJ898

Product details:

SKU - D437 UPC - 815585029977 Refrigeration Fan Motor 3.3" Diameter Shaded Pole Thermally Protected Totally Enclosed Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 5/16" Diameter 1/4" x 20 Right-Hand Threaded Shaft" Leads Extended Studs Lead End, Mounting Bracket Lead End Length 8.00 Width 4.50 Height 4.50 Dimension Unit of Measure IN Weight 3.00 Country of Origin Mexico Units in Package 1 Power Rating (In HP) Power Rating (In KW) Speed (Max) 1550 Voltage 115 Frame Size 3.3 Enclosure Type Totally Enclosed Air Over Rotation Counterclockwise Shaft End Mounting Type Extended Studs Max Ambient 40°C Shaft Diameter ( In in.) 0.312 C Dim Connection Drawing No DE Bearing Type Sleeve Duty Continuous Air Over Electrical Type Shaded Pole Frame Length 2.48 Frame Material Rolled Steel Frame Type 3.3 Frequency 50 HP2 Number of Poles 4 Number of speeds 1 ODE Bearing Type Sleeve Outline Drawing No 7163480119_S001 Service Factor 1 Shaft Extension 1.12 Shaft Type Threaded Speed2 1550/1300 Starting Type Across The LineThermally Protected UDF_MANUFACTURER Fasco
